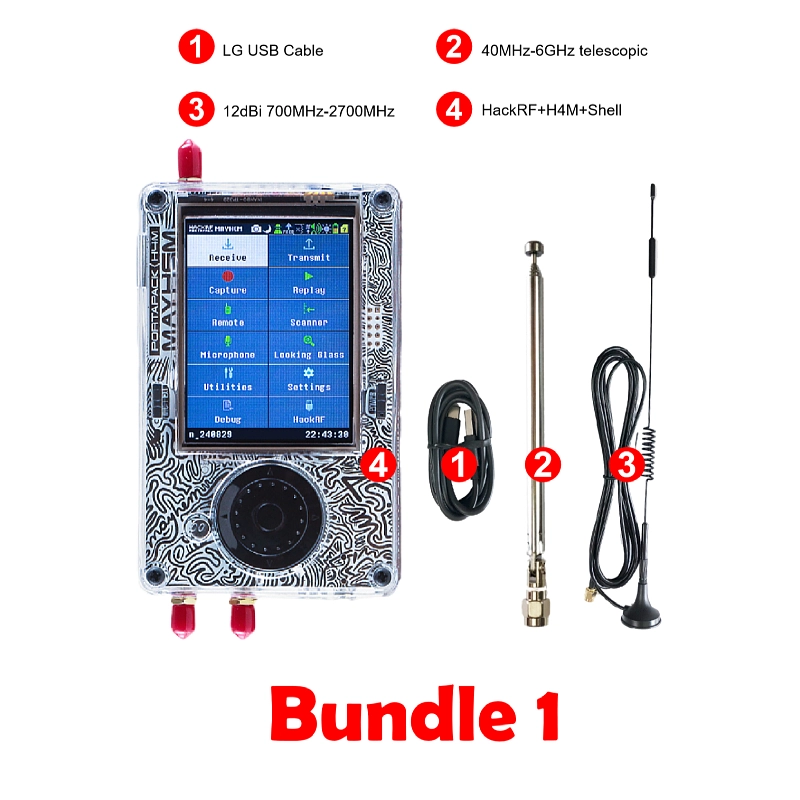

OpenSourceSDRLab 1MHz to 6GHz R10C and Mayhem Signature-Edition PortaPack H4M Software Defined Radio Kit
SKU: H4MBundle1
$210.00
Out of stock
Experience next-level wireless signal decoding with the H4M Receiver and Spectrum Analyzer — a compact, high-precision SDR receiver engineered to work seamlessly with HackRF One & Portapack. Whether you're a hobbyist or a professional, this device is ideal for real-time SDR radio scanning, decoding, and wideband analysis.
The HackRF One is an open-source hardware platform that functions as a USB peripheral or can be programmed for standalone operation. It supports the transmission and reception of radio signals ranging from 1 MHz to 6 GHz, rendering it an exceptionally versatile tool for RF exploration and development.
The Mayhem Signature-Edition Portapack H4M enhances the capabilities of the HackRF One by integrating a touchscreen interface, controls, and additional features. This transformation enables it to serve as a portable, standalone device for signal analysis and transmission without requiring a computer.
HackRF One Specifications
Frequency Range | 1 MHz to 6 GHz operating frequency |
Operation Mode | Half-duplex transceiver |
Supported Sample Rates | 2 Msps to 20 Msps (quadrature) |
Resolution | 8-bit quadrature samples (8-bit I and 8-bit Q) |
Interface | High Speed USB (with USB Type C connector) |
Power Supply | USB bus power |
Software-Controlled Antenna Port Power | Max 50 mA at 3.0 to 3.3 V |
Antenna Port | 50 ohms SMA Female Antenna Connector |
Antenna Port Power | 50 mA at 3.3 V DC (optional) |
Clock Input and Output Port | SMA female |
H4M Portapack Specifications
Display | 3.2 Inch 240x320 Matte LCD Touch Screen |
Controls | Arrow Keys, 360-degree Rotary Wheel (flat design), Select Buttons |
Audio | Built-in speaker, 3.5mm headphone/microphone jack, Built-in microphone with toggle switch |
Storage | MicroSD Card Slot for data import/export |
Battery | 2500 mAh Rechargeable battery with advanced management IC and status display |
Case | Transparent ABS injection molded shell |
Power | Single power on/off switch, USB-C charging |
Connectivity | GPIO port for custom add-ons |
H4M PortaPack Improvements
Single power on/off switch - When powered off, the battey will no longer phantom drain, i.e., the device can be completely powered off.
Advanced battery management IC and battery display (battery %, voltage, current/draw, etc...) - It is easier to check the battery voltage level, and current draw.
Matte screen - This matte screen can help you see the content of the screen much more clearly in sunny places outside.
360-degree Knob Button - The knob button becomes to be the flat design, going back to the ipod style click wheel. The knob is more convenient to use.c
The GPIO port! - This new generation H4M adds a GPIO port so users can make their own add-ons for the H4M, just like the flipper zero. This is a big step forward, and it's a design that hasn't been in any previous version of Portapack.
Improved charge speeds - The H4M improves the charging quality and speed.
Built in microphone and switch toggle - And there is a toggle to switch between the Built-in and the Headphone Microphone.
Automatic switching of sound between the headphone and the speakers - Once you plug the headphone, the H4M will automatically switches from speaker mode to headset mode. This is also a feature that the previous Portapack did not have.
