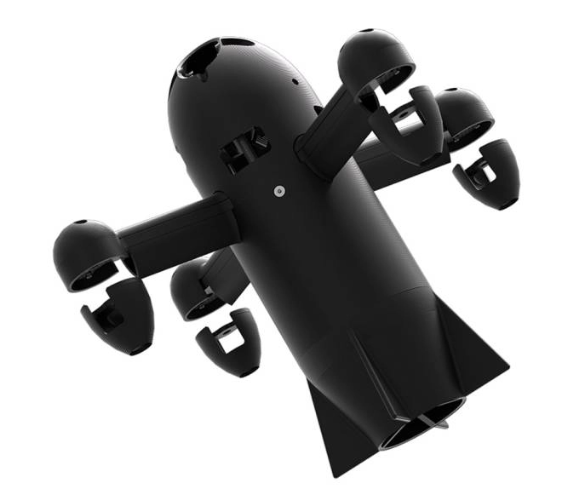

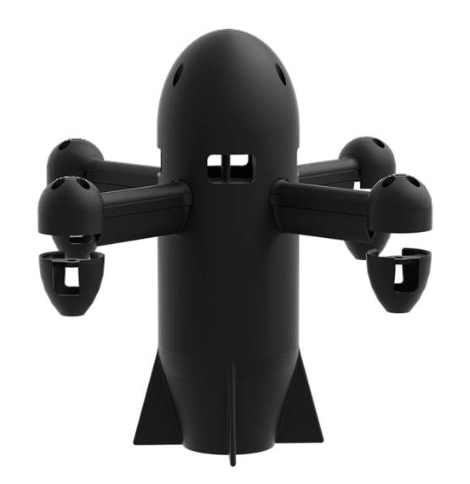

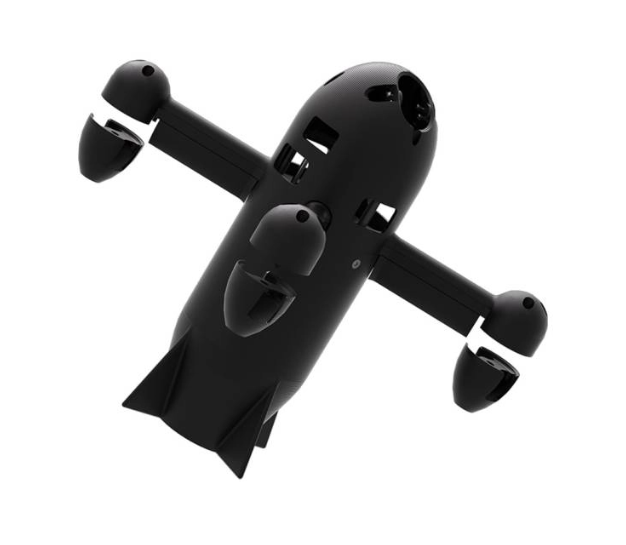

About this product

The AOS HS5 is engineered for unmatched speed and precision, reaching top speeds of over 200 mph (320 kph) while capturing every moment with stunning clarity. Designed for both professionals and enthusiasts, this aerodynamic frame offers an immersive 155° FPV experience, effortless assembly, and cutting-edge aerodynamics.

Features

• Immersive 155° FPV Experience

• Advanced Aerodynamic Design

• Supports 19-20mm Camera

• No Props in View

• Easy to Build

• Easy to Fly

Specifications

• Compatibility: BLITZ Whoop 1.6W VTX / DJI O3 Air Unit HD

• Motor Mounting: 16 × 16mm - 3mm / 19 × 19mm - 3mm

• Frame Dimensions: L165 × W165 × H226 mm

• Frame Product Name: AOS HS5 Frame Kit

• Flight Stack Mounting: 30 × 30mm - 3mm

• VTX Mounting: 30 × 30mm - 3mm

• Max Flight Stack Height: 30mm

• Bottom Plate Thickness: 6mm

• Frame Wheelbase: 233mm

• Top Plate Thickness: 2mm

• Max VTX Height: 30mm

• Arm Thickness: 6mm

• Weight: 226g

Includes

• 1x AOS RC HS5 High-Speed Drone Frame Kit

• 1x Bottom Plate

• 1x Hardware Kit

• 2x Battery Pads

• 1x Top Plate

Key Features

Immersive 155° FPV Experience

Immerse yourself in the action with a full 155-degree field of view (FOV) for the FPV camera with no props in view. This expansive view is perfect for DJI O3 users and guarantees an immersive flight experience for both professionals and enthusiasts. ND filters for the O3 Cameras are fully supported.

Advanced Aerodynamic Design

The aerodynamic shells of the AOS HS5 have been optimized with the use of CFD tools to minimize the drag on the drone at high speeds. The tail fins add aerodynamic stability for smooth footage. Aerodynamic spinners for the props minimize the drag of the motors.

Easy to build

The AOS HS5 is designed to be an incredibly easy and user-friendly FPV frame to build. The front shell has space and a place for every component: your Camera, VTX, Receiver, Antennas, and Electronics stack are all contained inside.

Easy to fly

A simple twist locks and unlocks the rear shell for easy battery swaps. Cutouts allow access to the USB ports of the VTX and flight controller as well as providing essential cooling for the ESC. The rear shell only contains the battery making it straightforward to change packs without disturbing any of your electronics.

Start slow with your usual 30 degree camera uptilt and work up to ultra high speed runs with up to 90 degrees camera uptilt.

Technical Specs

• Supports up to 6" Props (Recommend APC 5.25” Props)

• Supports 30.5 mm Electronics Stacks

• Supports all popular Digital and Analog VTXs

• 155° FOV no props in view (at typical high speed camera uptilt)

• Fully DJI O3 compatible (ND filters)

• Supports 19 - 20 mm cameras

• Supports up to 1800mAh 6S Batteries (90 x 40 x 55 mm)

• ⌀16 - ⌀19mm motor mounting (2808 1950KV Recommended)
